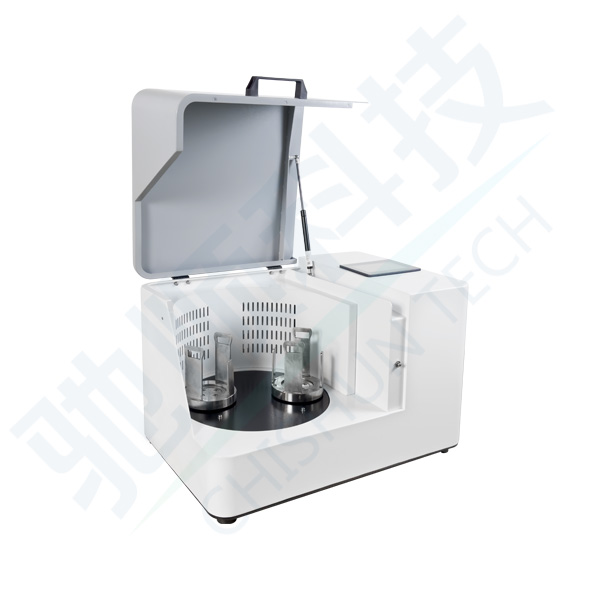

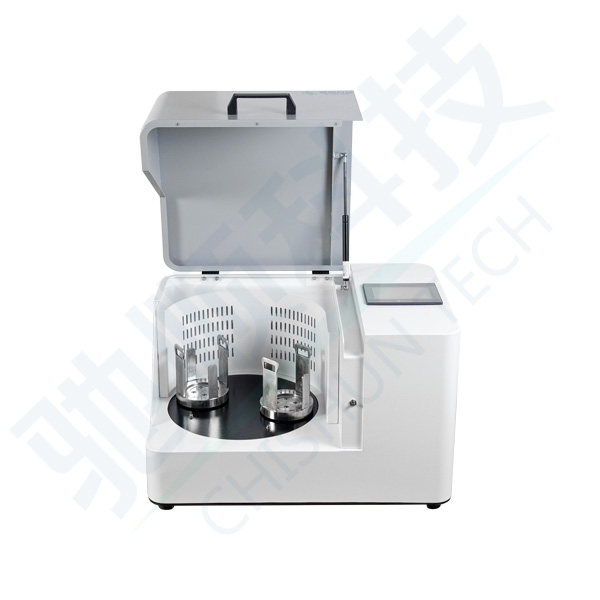

The PULVERIZER 500 （2-pots ）high-energy planetary ball mill is equipped with four grinding platforms on the same turntable. When the turntable rotates, the ball milling tank rotates around the axis of the turntable and rotates around its own axis, making planetary motion. Abrasives and test materials are used to roll at a high speed in the grinding tank to produce strong shear, impact and rolling of materials to achieve the purpose of crushing, grinding, dispersing and emulsifying materials.

The PULVERIZER 500 （2-pots ） high-energy planetary ball mill is an ultra-high performance planetary ball mill consisting of two single tank bases located on the same turntable. The machine is small in size, easy to operate and rotational speed up to 450rpm. It can crush and grind materials such as hard, soft, brittle, dry and wet materials continuously and efficiently without loss. At the same time, the PULVERIZER 500 （2-pots ） high-energy planetary ball mill also meets the technical requirements and energy input for mechanical alloy treatment and colloid material grinding.

How it works

The crushing and grinding of materials are mainly realized by high-speed friction and collision between grinding balls. When the plate rotates, the grinding tank with sample material and grinding ball rotates at a high speed around its central axis in the opposite direction. At a certain speed, the centrifugal force separates the sample and the grinding ball from the inner wall of the grinding tank. The grinding ball shuttles back and forth at high speed in the tank, and the sample is further ground by hitting the tank wall. In addition, the impact collision between grinding balls also accelerates the consumption of sample size. The main disk of the solar wheel of the PULVERIZER 500 high-energy planetary ball mill has a rotating speed of up to 450rpm and a centrifugal force of 25g.

Specifications
